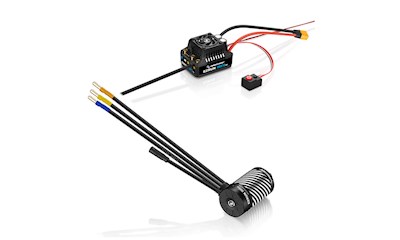

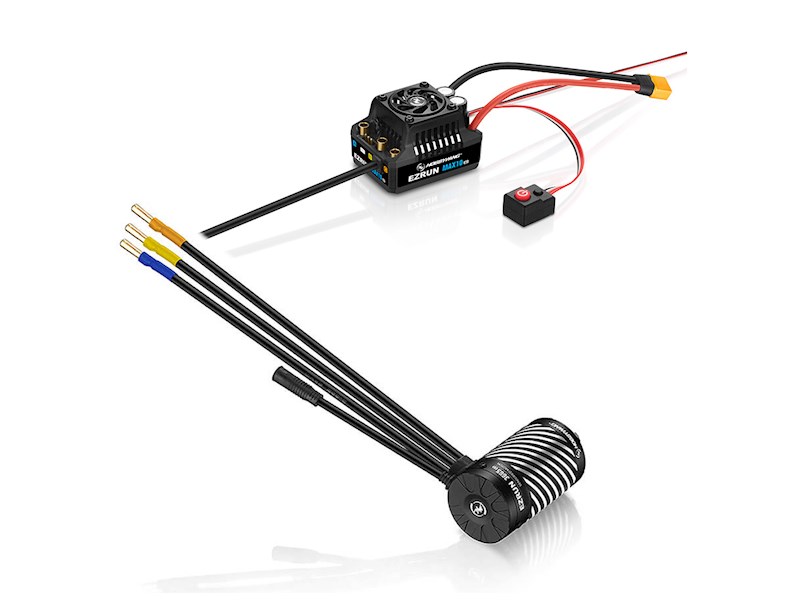

EZRUN Combo - MAX10 G2 140A & 3665SD 2400KV G3

Introducing the Hobbywing EZRUN MAX10 G2 - 140A Speed Control & 3665SD 2400KV G3 Motor Combo.

Compared with the previous generation, the Max10 G2 not only has strong explosive power and stable output power, but also has excellent low-speed linearity . It can not only easily realize violent start-up, straight-line high-speed, flying slopes, but also smooth low-speed walking

It supports turbo timing adjustment up to 32 degrees . It has a significant turbo timing effect when paired with EzRun 3652/3665 G3 , and the maximum speed can be increased by about 25% .

Patented frameless fan + smart start-stop technology
The side of the frameless fan has a large flow of air,blowing heat away from the integrated case radiator quickly.
Intelligent start-stop technology, intelligent start-stop fan,when the temperature is low, the fan is not activated, reducing noise and saving power; when the temperature rises to a certain level, the fan is activated to effectively dissipate heat.

Dynamic data acquisition
As convenient as ever.
After connecting the ESC to the OTA Bluetooth module , you can check the throttle, voltage, current, temperature, speed and other data in real time through the mobile APP to know the power running status; you can also grasp the power .

IP67 protection, 24/7 operation
The new induction line interface is waterproof design, the overall protection level is IP67 , and it can operate in various climatic conditions and harsh environments. Note: This ESC also supports sensored motors with common interfaces, and you need to purchase an adapter cable to realize it.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Cont./Peak Current - 140A/880A
Input Voltage - 2-4S LiPo
BEC Output - Switch Mode: 6V/7.4V,5A

Wires & Connectors
Input Wires - Red-12AWG-150mm*1 Black-12AWG-150mm*1
Output Connectors - XT60
(Note: All the wire length above is the original length not the length you see from the outside.)

Fan
Size - 30x30x10mm
Voltage Range - 5-7.4V
Powered by - BEC

ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Supported
Program Port - Independent programming port

Firmware
Firmware Upgrade - Supported

Size & Weight
Size - 53mm*39.5mm*37.2mm
Weight - 120g (including wire plug)

Applications
Motors
Sensorless brushless motor/ sensored brushless motor
Vehicles
1/10 th short truck/truck/monster
KV Rating/T Count
3S lithium battery: KV?4000KV 3665 size motor
4S lithium battery: KV?2600KV 4268 size motor
