AXE Plus R3 Combo and AXE550L 3300KV R2

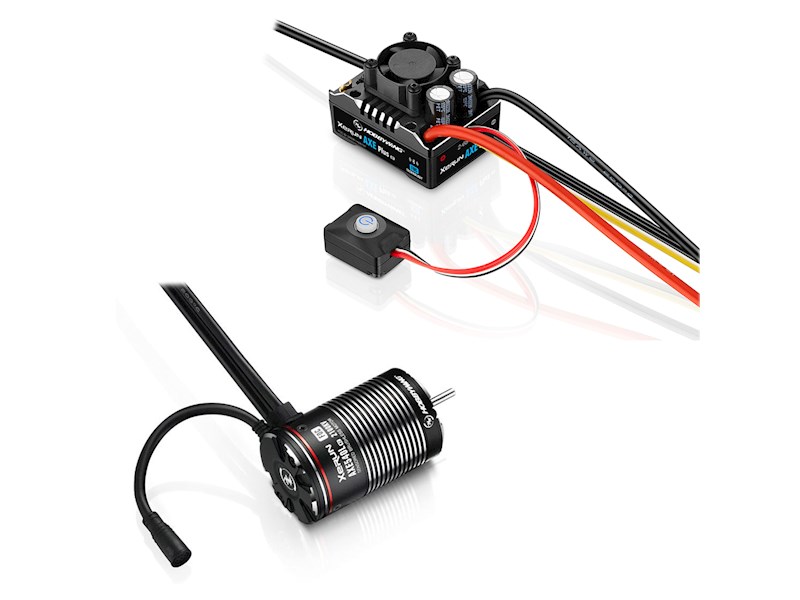

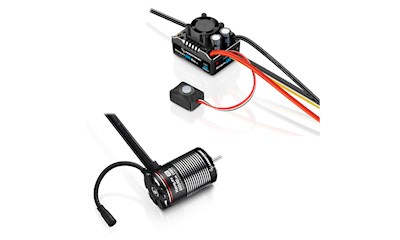

Introducing the Hobbywing XeRun AXE PLUS R3 Sensored Brushless Crawling Speed Control and AXE 550L 3300KV R2 Combo.

The ESC supports up to 6S LiPo battery. It has a maximum output current of up to 135A.

The AXE R3 can be used on 1/10th and 1/8th crawler, also compatible with 1/7th and 1/6th crawler.

Super Internal BEC
It has a built-in powerful BEC with a maximum output current of 15A. The voltage is switchable between 6V/7.4V/8.4Vand is suitable for various standard/high-voltage servos and peripheral electrical equipment on the market (such as light sets, winches, etc.).

High protection level
The AXE R3 brushless system is now IP67 protected. It has excellent waterproofing and dust-proofing performance to cope with various climatic conditions.
Note: The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to aging. Do not submerge in water for a long time, otherwise the product may be damaged.

Widely applicable 6S high-power crawler ESC
The ESC supports up to 6S LiPo battery. It has a maximum output current of up to 135A.
The AXE R3 can be used on 1/10th and 1/8th crawler, also compatible with 1/7th and 1/6th crawler.
New compact design. Compatible with all Axe R2 motors.

The AXE R3 is 2.1mm longer, 1.7mm wider and 3.7mm shorter than the R2 ESC.

Dual external control channels, real-time adjustment of parameters
Connect the white and yellow signal cables to open channels of the receiver to adjust parameters in real time.
The actual functions of the white and yellow wires correspond to the setting parameters of channel 3/4 in the parameter table respectively.

FOC drive,& linear, with plenty torque, and very quiet
The XeRun AXE R3 is equipped with a FOC drive system. The large torque and excellent linearity when operating at low speed further exceeds ordinary brushless power systems and out performs brushed power systems. The XeRun AXE R3 is nearly silent, and it’s the perfect choice for crawling vehicles.
Smart torque output, easy to control
The ESC automatically increases the torque output to overcome resistance and accelerate up the hill. Vice versa, the ESC automatically reduces the torque output and stabilizes the vehicle speed when going down the hill. Provides excellent control going Up, or Down hills.
Smart fan start and stop function
The fan starts to operate automatically ONLY when the ESC temperature reaches the preset value. The smart start and stop function of the fan helps to save power, reduce noise, and also ensures that the ESC works in a good temperature range.

Built-in Bluetooth for Connecting the Mobile APP Directly
The ESC has a built-in Bluetooth module. Parameter settings, data reading, firmware upgrade and other operations can be achieved by connecting the device to the mobile APP.

Obtain AXE Running Status with Real-time Data Function with ease
Connect the ESC to the HW Link mobile app and turn on the real-time data function. You are able to view throttle, voltage, current, temperature, speed and other data in real time, and obtain the ESC and motor operating status with ease.
The effective distance is only about 5m due to transmission distance of bluetooth.

Built-in data logging function,ease of obtaining power operating status
The ESC has a built in data rcoerding module. Store up to 10 minutes of your most recent run. Using the HW Link V2 App, you can view the data saved to the ESC. In addition, the module allows you to view Real Time Data from the ESC for bench top testing and viewing of the data outputs.
