COMBO QR10BL120-SD G2 + QR3650SD 10.5T G2

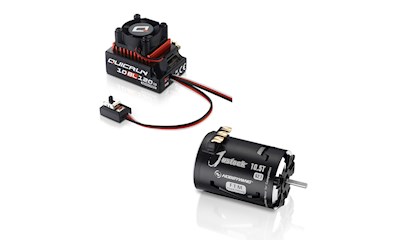

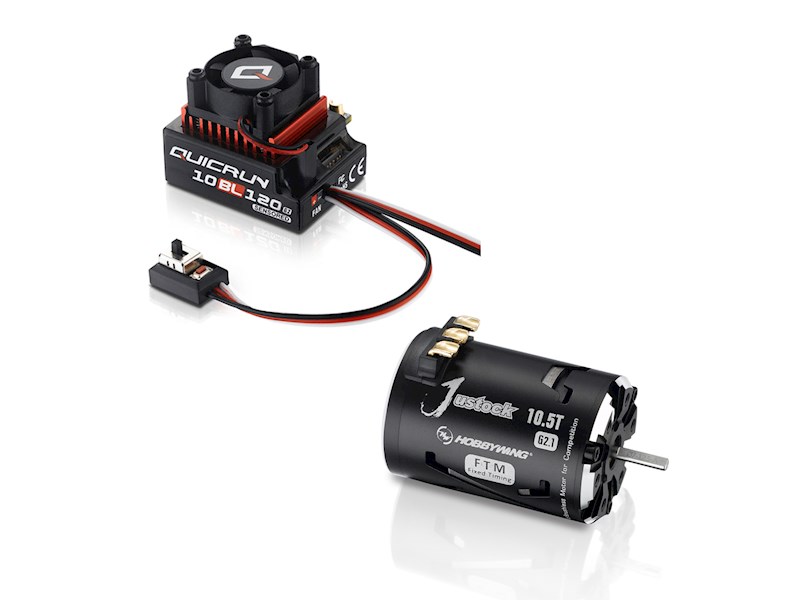

Introducing the Hobbywing QuicRun WP 10BL120 G2 and QuickRun 3650SD 10.5T G2 motor combo.

Intelligent freewheeling technology, greatly improved performance.
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always performing at its best.

Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 120A/760A
Input Voltage - 2-2S LiPo
BEC Output - 6V/7.4V@4A

Wires & Connectors
Input Wires -Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1&
Output Connectors -& Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Program Port - Separate Program Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size -43*36.8*32.3mm&
Weight -101.5g (Included wires&connectors)&

Applications
Motors -Sensorless / Sensored Brushless Motor&

Vehicles -1/10^th& Touring Cars/Buggies/Drift Cars
KV Rating/T Count -2SLipo?4.5T 3SLipo?10.5T 3650 Size Motor& - The main feature of these motors is the fixed timing and easy to use solder joints, making it an excellent motor for controlled classes.

Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
- This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.

&
