QUICKRUN Outer 1621SL 3500KV Black

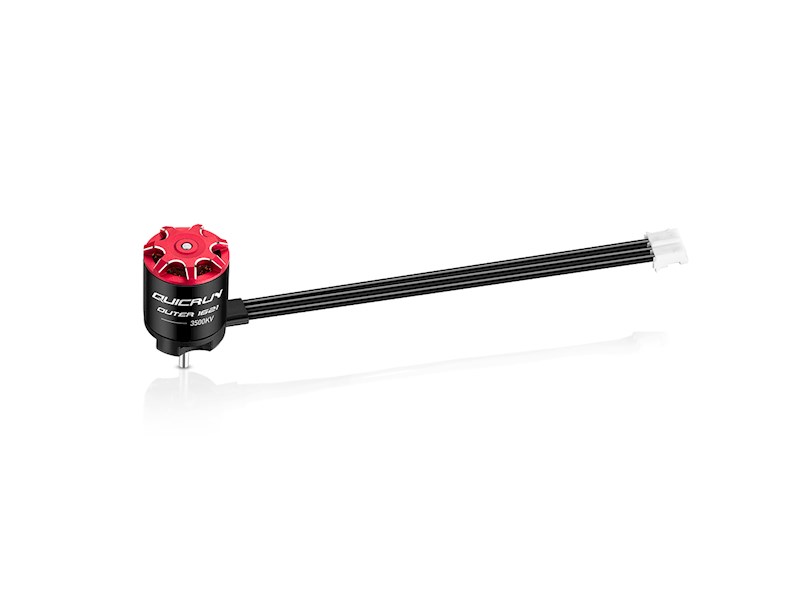

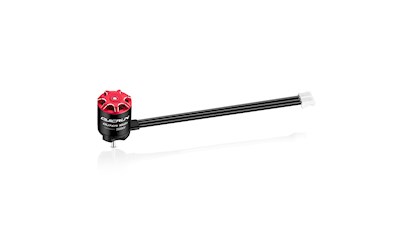

Introducing the Hobbywing QuicRun Outer 1621 SL Motor.

The perfect combination for QuicRun WP-MINI24 ESC

The motor is equipped with a standard PH 2.0-3PIN male connector, ensuring seamless plug-and-play functionality with the QuicRun WP-MINI24 ESC, offering excellent compatibility.

Provides good inearity at low speeds with minimal vibration amplitude
The rotor has undergone precision dynamic balancing, significantly reducing vibration and performance loss while ensuring excellent low-speed linearity and a smooth control experience.

Silicone wire outlet
The motor features a silicone wireoutlet, offering easier and more aesthetically pleasing wiring compared to traditional high-hardness enameled wire outlets.

High installation compatibility for versatile usage
The motor includes 3 sets of M2 screw holeshole pitches 9mm/10mm/12.5mmmaking it compatible with various motor base mounting hole diameters and offering excellent adaptability.

Low cogging torque for smoother operation
The motor features a low cogging effect and minimal torque pulsation?ensuring exceptionallysmooth operation at low speeds, perfectly meeting the drivers' need for precise control.

The modular design allows for easier disassembly and maintenance
The motor features a modular design allows for direct disassembly, making daily cleaning and maintenance easy.This not only extends the motor's service life but also helps maintain optimal working efficiency.

Specifications

Type
Scale: 1/10th
Brushed / Brushless: BL
Sensored / Sensorless: SL
Pole Count: 12

Relevant Parameters
KV Rating: 3500KV
LiPo Cells: 2-3S
No-Load Current(A): 0.6A

Size & Weight
O.D.(mm): 15.8
Length (mm): 21
Shaft Diameter (mm): 2
Weight (g): 16.7g

Other Parameters
Recommended ESC - QuicRun WP MINI24
Application: 1/24th Crawlers
