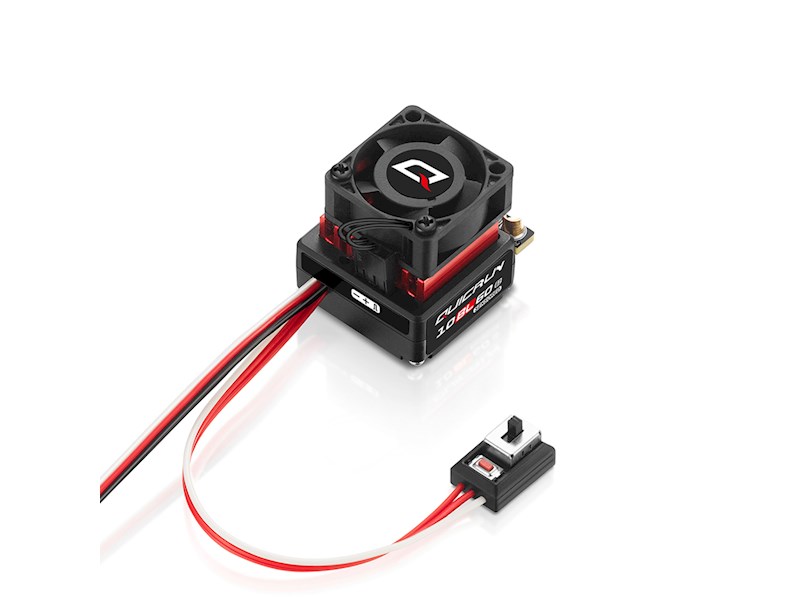

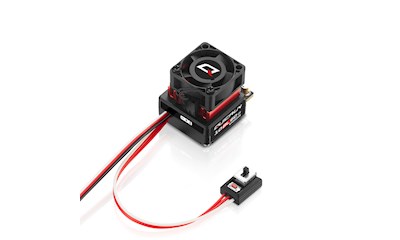

QUICRUN 10BL60 Sensored G2 ESC

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1?Yellow-14AWG-175mm*1?Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port

Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2
