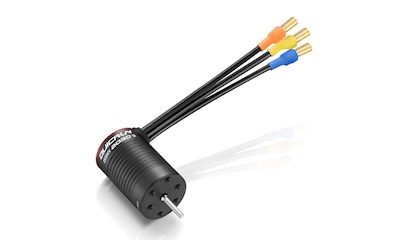

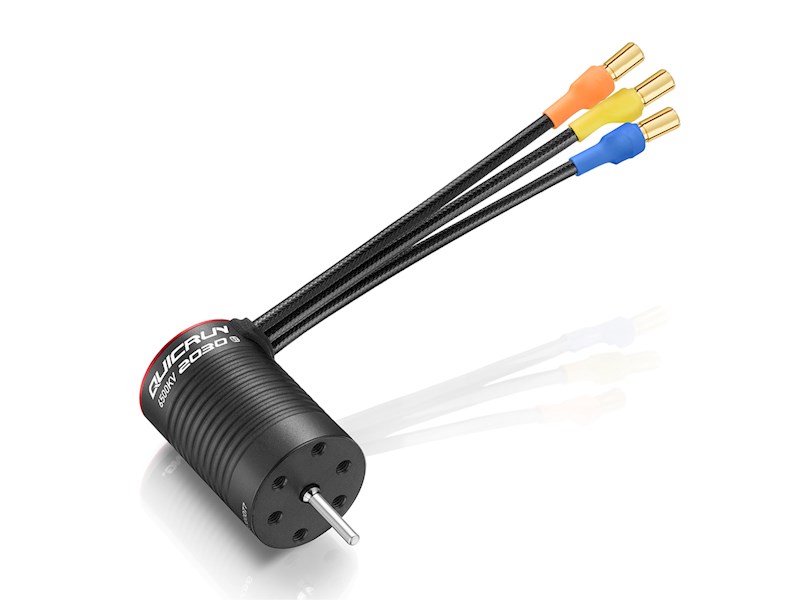

QUICRUN 2030SL 5000KV Black G2

From Hobbywing the QuicRun 2030 G2 brushless motor.& Suitable for all types of 1:18 scale vehicles.

Increased Efficiency
The maximum efficiency is increased by over 6%

Reduced Temperature
Under equivalent load conditions, the maximum temperature can be reduced by approximately 20?
Compared to EzRun 2030 motor

Supports higher speed limit
The motor adopts an integrated magnetic ring structure to strengthen the rotor. It is able to support a higher speed limit of up to 65000RPM. It is increased by 4% when compared to EzRun 2030.

Excellent protection
The outlet of the motor is sealed with a silicone rubber sleeve to operate in harsh conditions suchas dust, sand and gravel.
Note: It is recommended to block the unused mounting holes of the motor front end cover with screws.

Upgraded materials increased durability
-0.2mm thick silicon steel sheet.
-High-strength explosion-proof rotor.
-High-temperature resistant enameled wire.
-High-precision bearings.

Plug-and-play
Wire outputThe motor output wires are soldered with 24k gold-plated 3.5mm plugs. The plug-and-play connectivity makes it easy to use and improves the quality of life.

Wide applicability
It is widely applicable with three KV values to choose from. It is suitable for all types of 1:18 scale vehicles ranging from on-road to off-road vehicles, short course trucks, trucks, and monster trucks.

Specifications

Scale - 1/18th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 2

Relevant Parameters

KV Rating - 5000
LiPo Cells - 2-3S
No-load Current (A) - 1.05A

Size & Weight

O.D.(mm) - 30
Length (mm) - 31
Shaft Diameter (mm) - 2
Weight (g) - 42g
Bearing - D8*D3*T4
Connectors - 3.5mm (Male)

For 1/18th vehicles.

Recommended ESC - QUICKRUN WP 16BL30
