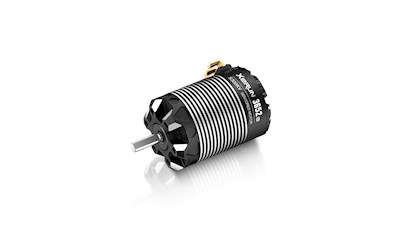

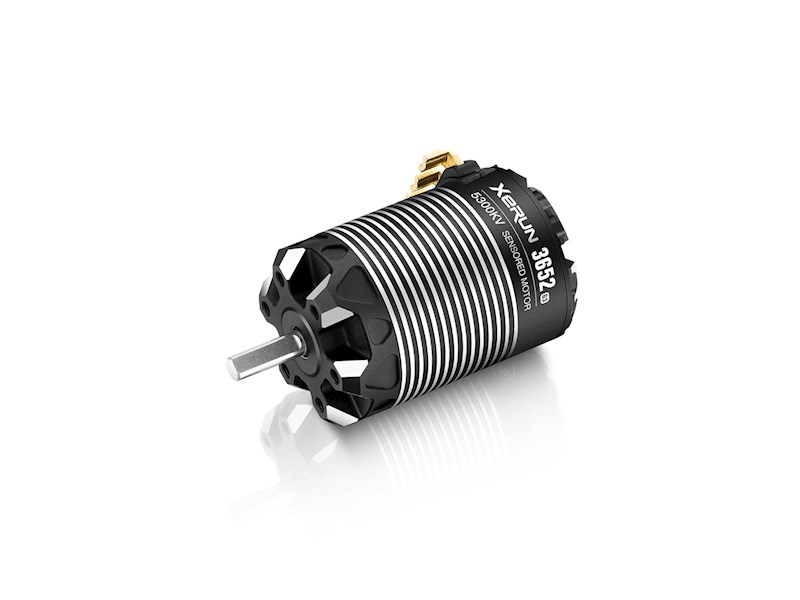

XERUN 3652SD 5300KV BL Motor BLACK G3

Introducing the XeRun 3652 / 3660 G3 motors from Hobbywing.

Taking 3652-4500KV as an example, the maximum power increase is about 5%.
Compared with the older XeRun 3652/3660 G2 motors, the motor output power is improved across the entire application load range

Turn on Turbo to significantly increase the speed.
Compared with the XeRun 3652/3660 G2 motor, the maximum speed of the ESC is increased by 50%-100% when the 24° Turbo timing is turned on .
Note: Due to the difference in KV characteristics of each motor, there is a slight difference i

Safe and reliable motor Hall sensor system.
The motor adopts the patented "error-free" Hall sensor system technology. The independent high-speed and high-precision encoder can always output pure rotor position signals, effectively avoiding sensor signal interference, so that the motor can continue to work stably in the sensed state.

High reliability.
Explosion-proof rotor
Compared with the XeRun 3660 G2 motor, the XeRun 3660 G3 can reach an ultra-high speed of 75,000RPM (high temperature 140°C ), and its explosion-proof capability is improved by more than 15% , making it easy to cope with high-speed competition applications.

Excellent dust resistance
The motor protection level is excellent for dust resistance, and can easily cope with various off-road dusty track environments.

Dual Hall sensor port design for easy wiring
The dual Hall output socket design at the rear of the motor meets various wiring requirements . Customized dust plugs are also provided to prevent sand from entering the sockets that are not in use temporarily.

Bidirectional mechanical timing angle precise adjustment
The motor mechanical timing angle can be adjusted in 20-40°bidirectional (CW/CCW)

It is convenient for drivers to adjust the motor output power more accurately

Meet the power needs of various applications

Easy to disassemble and maintain

The motor adopts modular structure design

Easy to clean and maintain daily

Effectively extend the service life of the motor

Maintaining motor efficiency

Low cogging torque
The motor has low cogging effect and small torque pulsation. When running at low speed , the motor is very smooth and has excellent controllability .

Unique design, superior materials
The outlet end adopts widened.& U-shaped gold-plated curved copper. The internal resistance is extremely low, and the gap between copper bars is increased, making it easy to weld.

Unique design, superior materials
The outlet end adopts widened. U-shaped gold-plated curved copper. The internal resistance is extremely low, and the gap between copper bars is increased, making it easy to weld. High performance first-line brand.

International first-line brand bearings

200°C high temperature resistant enameled wire.

Easily cope with the harsh test of competition.

Specifications

Type
Scale: 1/10th
Brushed / Brushless: BL
Sensored / Sensorless: SD
Feeling/No Feeling: Feeling
Pole Count: 4

Relevant Parameters
KV Rating: 5300KV
LiPo Cells: 2S
No-Load Current(A): 7.5A

Size & Weight
O.D.(mm): 36.6
Length (mm): 53
Shaft Diameter (mm): 5
Weight (g): 194g
Front Bearing: D13*D5*T4
Rear Bearing: D11*D5*T5

Other Parameters
Recommended ESC - XERUN XR8 PRO G3
Application: 1/10 short truck (2WD), off-road, rally.
