M-2205 - 2350 kV, Brushless, Poles: 2

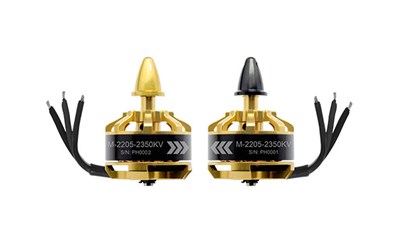

Scorpion M-2205-2350 - DER ultimative Brushless Motor für FPV-Champions

Der Artikel besteht aus 2 Motoren (1x CW und 1x CCW)

• Stator Diameter 22.0 mm (0.87 in)


• Stator Thickness 5.0 mm (0.197 in)


• No. of Stator Arms 12


• Magnet Poles 14


• Motor Wind 22 Turn Delta


• Motor Wire 4-Strand 0.21mm


• Motor Kv 2350 RPM / Volt


• No-Load Current (Io/10V) 0.88 Amps


• Motor Resistance (Rm) 0.775 Ohms


• Max Continuous Current 25 Amps


• Max Continuous Power 420 Watts


• Weight 30.6 Grams (1.08 oz)


• Outside Diameter 27.85 mm (1.13 in)


• Shaft Diameter 2.98 mm (0.12 in)


• Body Length 21.35 mm (0.84 in)

• Output Shaft Length 12 mm (0.47 in)


• Max Lipo Cell 4s


• Motor Timing 5deg


• Drive Frequency 8kHz
