  4. SAVÖX RC Servo SV-1254MG Coreless - Standard (20mm) Niederbau, 15 kg, 0.085 s, 46 g, Metall, Digital
SV-1254MG Coreless

SAVÖXRC ServoSAV-SV1254MG

CHF 68.15
sofort, ab Lager

SV-1254MG Coreless - Standard (20mm) Niederbau, 15 kg, 0.085 s, 46 g, Metall, Digital

Produkttyp:RC Servo
ArtikelNr:SAV-SV1254MG
Hersteller:SAVÖX
HerstellerNr:SV1254MG

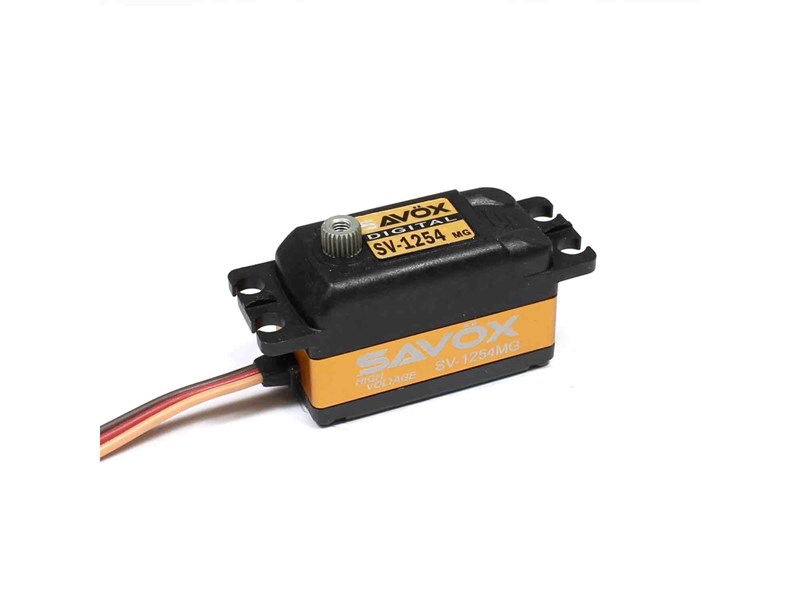

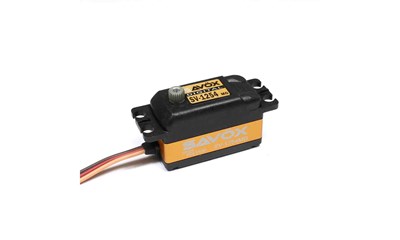

The SV-1254MG servo is a high performance coreless servo with good torque and fast transit time in a low profile package.

Features:

Steel gear train provide durability against heavy use.
Capable of HV operation.
Standard size performance in a low profile package.
Ideal for 1/10 on road and other applications where space is tight.

Specifications:

Torque @6v - 12.0kg/166.6oz-in
Torque @7.4v - 15.0kg/208.3oz-in
Speed @6v - 0.11 sec/60 deg
Speed @7.4v - 0.085 sec/60 deg
Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
Weight: 46.0g

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 150mA @6.0V, 180mA @7.4V
Stall Current (at locked): 5200mA @6.0V, 6400mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 ? 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 900 ? 2050 µ second
Maximum Travel: Appx 160° (700 ? 2300 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless

mehr Anzeigen

Spezifikationen

Abmasse
Länge.:40.8 mm
Breite.:20.2 mm
Höhe.:25.4 mm
Technische Daten
HV Spannung:HVInfo
Spannung Max.:7.4 V
Spannung Min.:6 V
Anschluss Format:Futaba-Stecker
Baugrösse (Servo):Standard (20mm) Niederbau
Getriebematerial:Metalle>Metall
Gewicht.:46.0 g
Motortechnik:CorelessInfo
Stellkraft.:15.0 kg
Stellzeit.:0.09 s
Technologie (Servo):Digital

Erforderliches Zubehör

"Erforderliches Zubehör" nicht spezifiziert, eventuell sind zusätzliche Produkte erforderlich.
